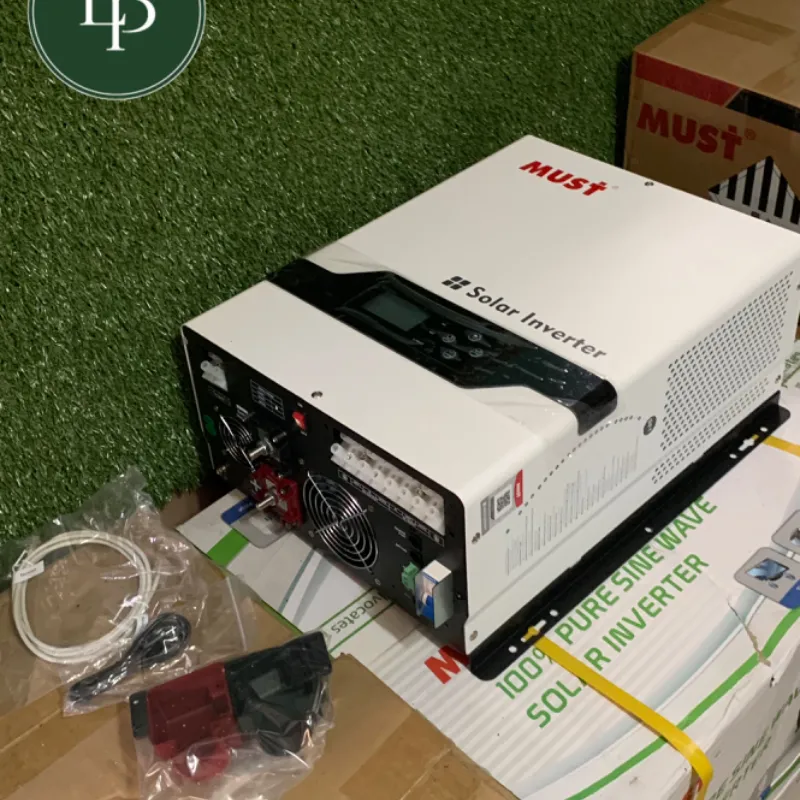

Inversor híbrido 3000w

Nuevo en caja
Loads distributing :
1. When only 120V loads, no 240V loads:
L1-N (120Vac) = 0-1500W, L2-N(120Vae ) = 0-1500 W
2.When only 240V loads, no 120V loads :
L1-L.2 (240Vac) = 0-3000W
3.If both have 120V and 240V loads :
L1-N (120Vac) = 0-1500W, L2-N(120Vac) =0-1500W,
L1-L2 (240Vac) = 3000W - Max power of loads
Warmly attention:
1.) For protecting machine, max. loads power not over
80% of each phase power.
2.) The Installation and maintenance must be carried out by qualified personnel.
SOLAR INVERTER
Model Name: PV3300
MD: PV33-3024 TLV
Operating Temperature: 0°C to +40°C
Protection Class: Class I
Protection Degree: IP 20
Inverter Mode:
Rated Power: 3000W
DC Input: 24VDC, 147A
AC Output: 110/220VAC 50/60Hz, 12.5A
AC Charger Mode:
AC Input: 220VAC 50/60Hz, 18A
DC Output: 24VDC 40A
Solar Charger Mode:
Rated Current: 80A
System Voltage: 24VDC
MPPT Voltage Range: 30-230VDC
Max. Solar Voltage (VOC): 245VDC
Max. Charge Current: 80A
